| ITEM# | Net weight (g) | Material | Length (cm) | Top Stud (mm) | Bottom Stud (mm) |
| MC-1003 | 20g | chrome plate steel | 26mm | 1/4"-20 Female | 3/8"-16 Female |
| MC-1004 | 30g | 40mm | 1/4"-20 Male | 3/8"-16 Male | |
| MC-1005 | 60g | 57mm | 1/4"-20 Male | 5/8" /16 mm Hex Stud | |

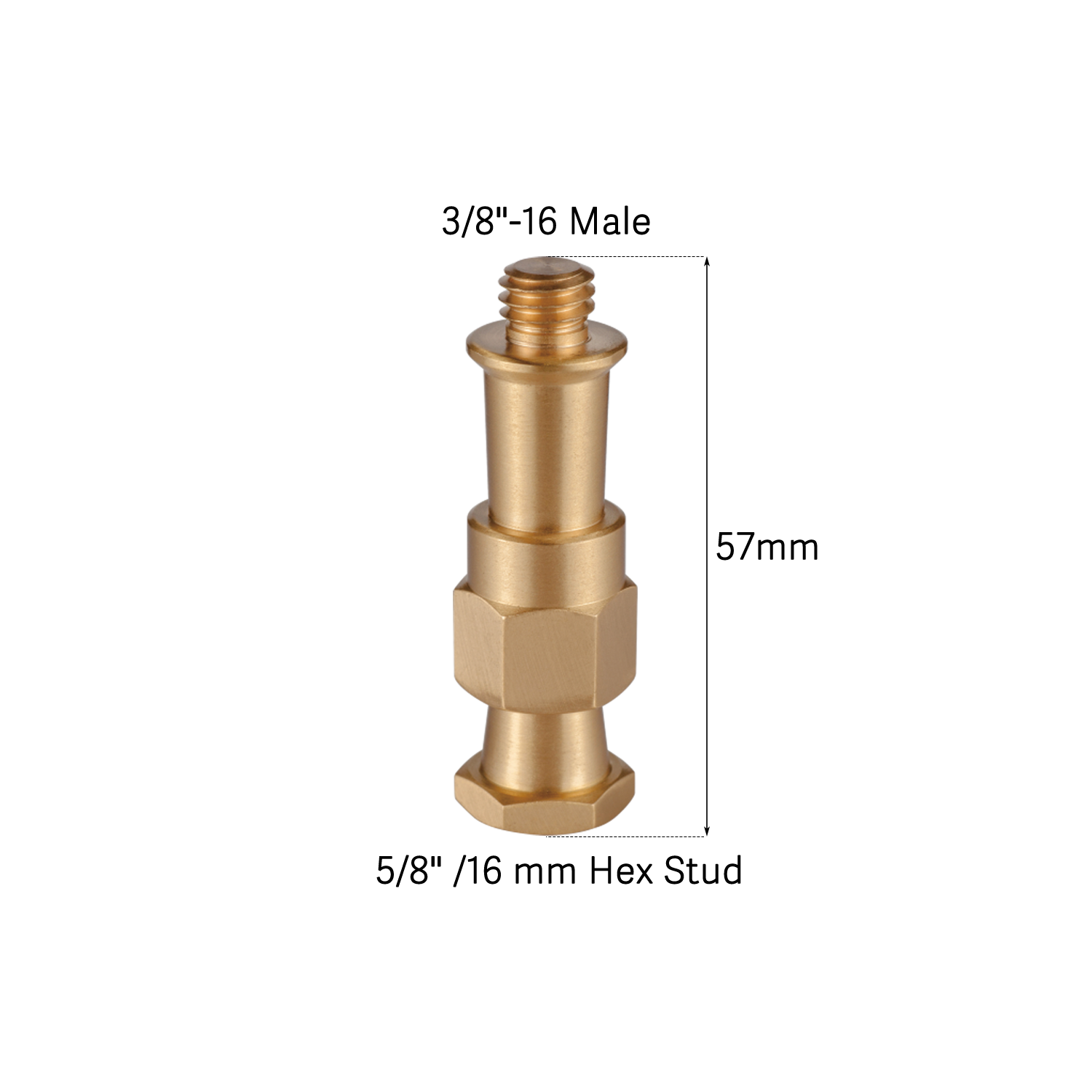

| MC-1006 | 60g | 57mm | 3/8"-16 Male | ||

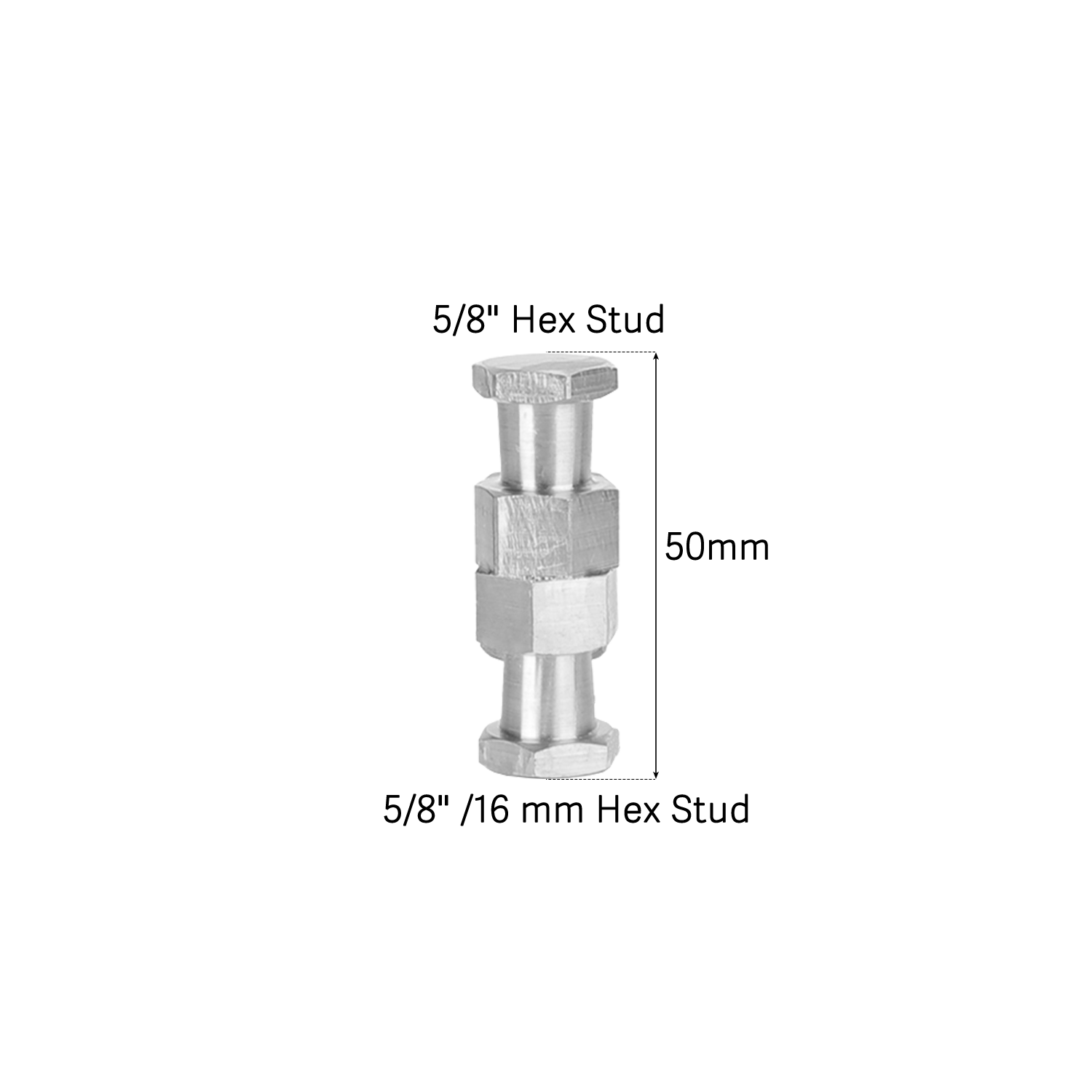

| MC-1063 | 40g | 50mm | 5/8" Hex Stud | ||

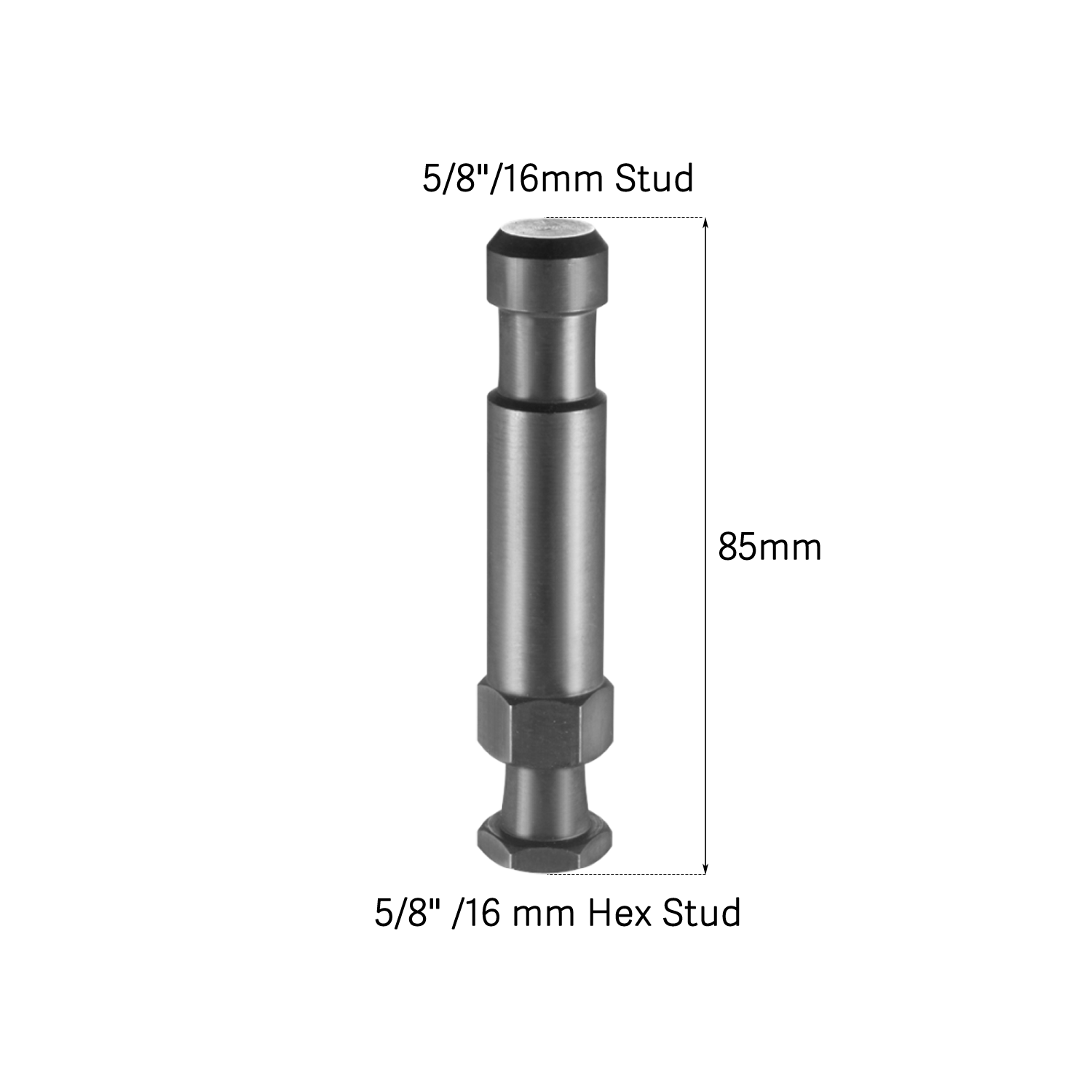

| MC-1007 | 40g | aluminum with oxidation | 85mm | 5/8" /16 mm Stud | 5/8" 16 mm Hex Stud |
| MC-1008 | 60g | 120mm | |||
| MC-1009 | 20g | 50mm | 5/8" 16 mm Hex Stud | ||

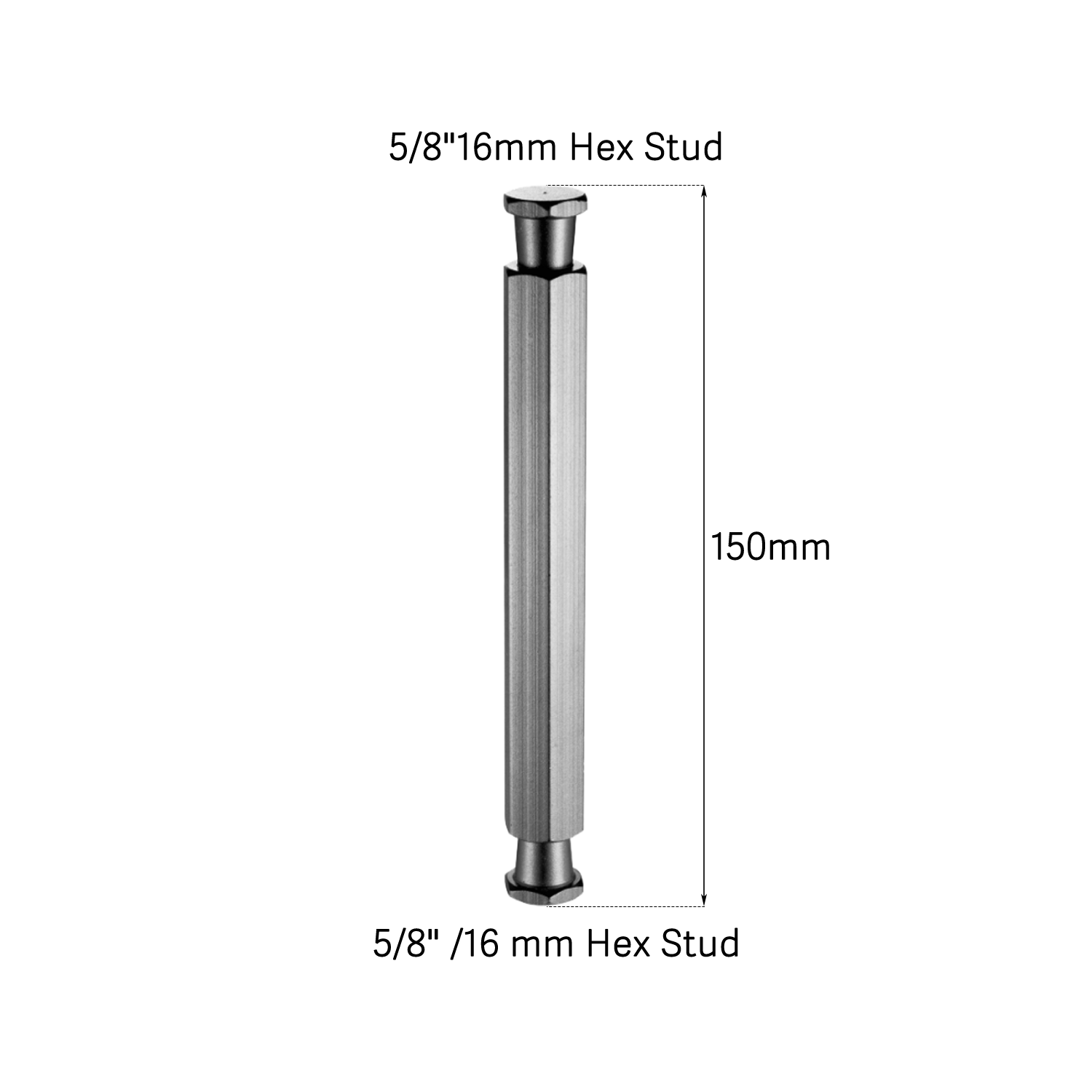

| MC-1010 | 80g | 150mm | |||
| MC-1003A | 23g | solid brass | 26mm | 1/4"-20 Female | 3/8"-16 Female |
| MC-1004A | 35g | 40mm | 1/4"-20 Male | 3/8"-16 Male | |
| MC-1005A | 70g | 57mm | 1/4"-20 Male | 5/8" /16 mm Hex Stud | |
| MC-1006A | 70g | 57mm | 3/8"-16 Male | ||
| MC-1063A | 50g | 50mm | 5/8" Hex Stud |

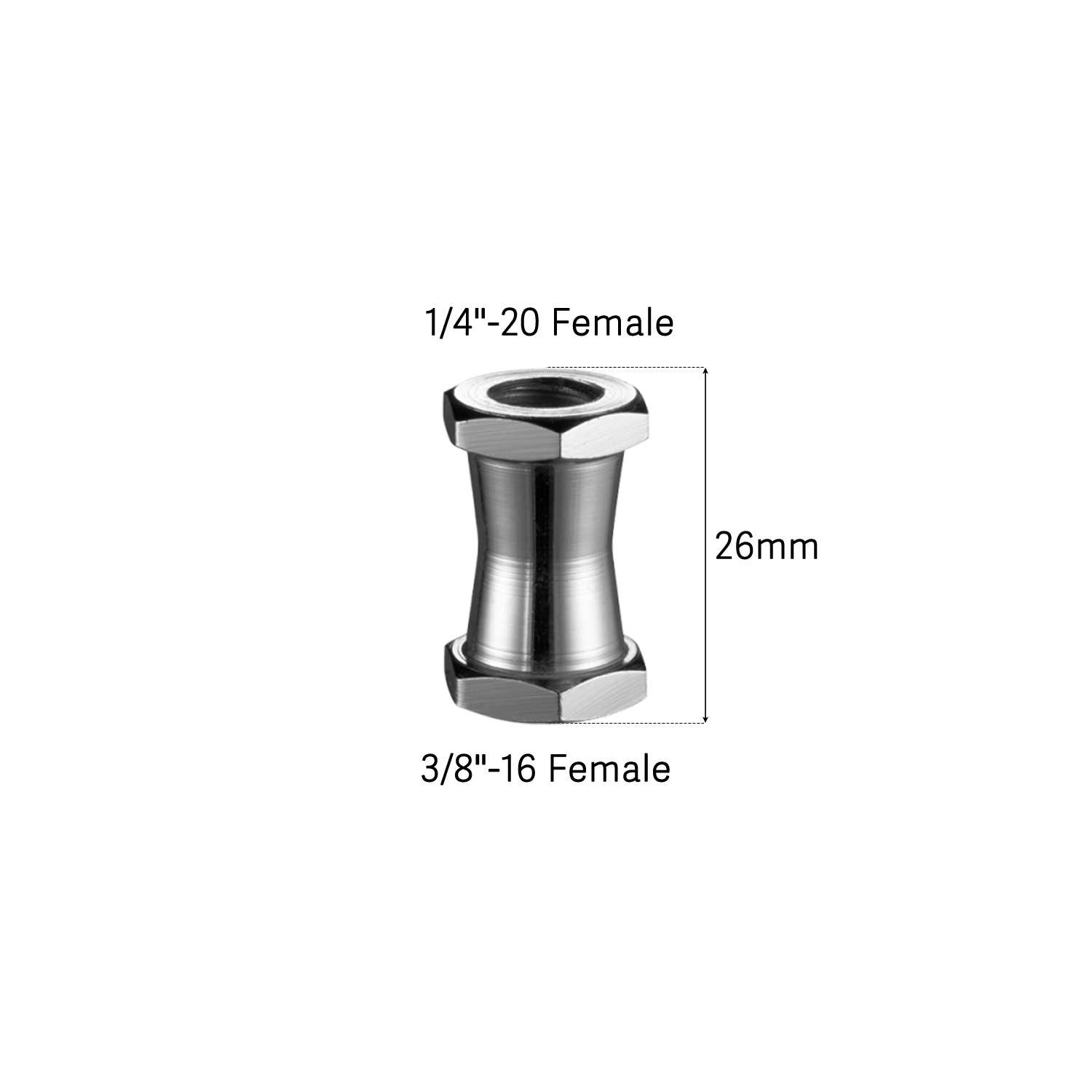

The Short Double Female Stud MC-1003 for Super Clamps with 1/4"-20 & 3/8"-16 Threads. It is a double-ended 5/8" diameter brass stud that has a 1/4"-20 female thread on one side and a 3/8"-16 female thread on the other. It can be used directly with a Super Clamp, or to extend an existing threaded stud.

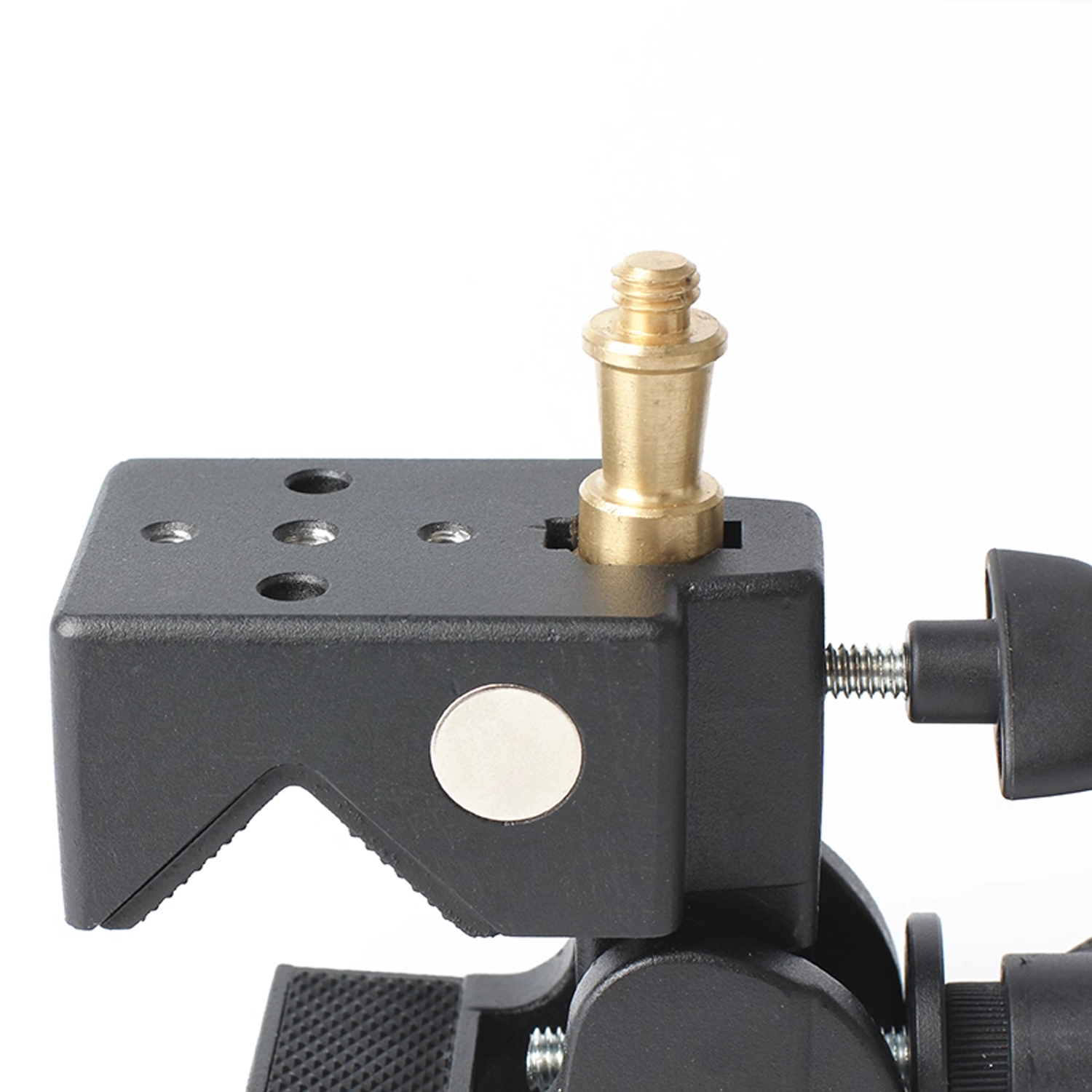

The Standard Stud for Super Clamp with 1/4"-20 Male Threads MC-1005 and MC-1005A. It features a male 1/4"-20 on one end, and it snaps into a Super Clamp socket on the other end. It can be used to mount cameras or other accessories that feature a 1/4"-20 socket directly onto the Super Clamp, and it is constructed from durable brass.
The 4.7" black 5/8" Snap-In Pin MC-1008 for Super Clamps has a 5/8" (16mm) non-threaded spigot attachment on one end, and the hexagonal Super Clamp-type fitting on the other. It can be used to connect a lighting fixture that has a 5/8" female receptor to a Super Clamp. It is constructed from aluminum and comes finished in black.

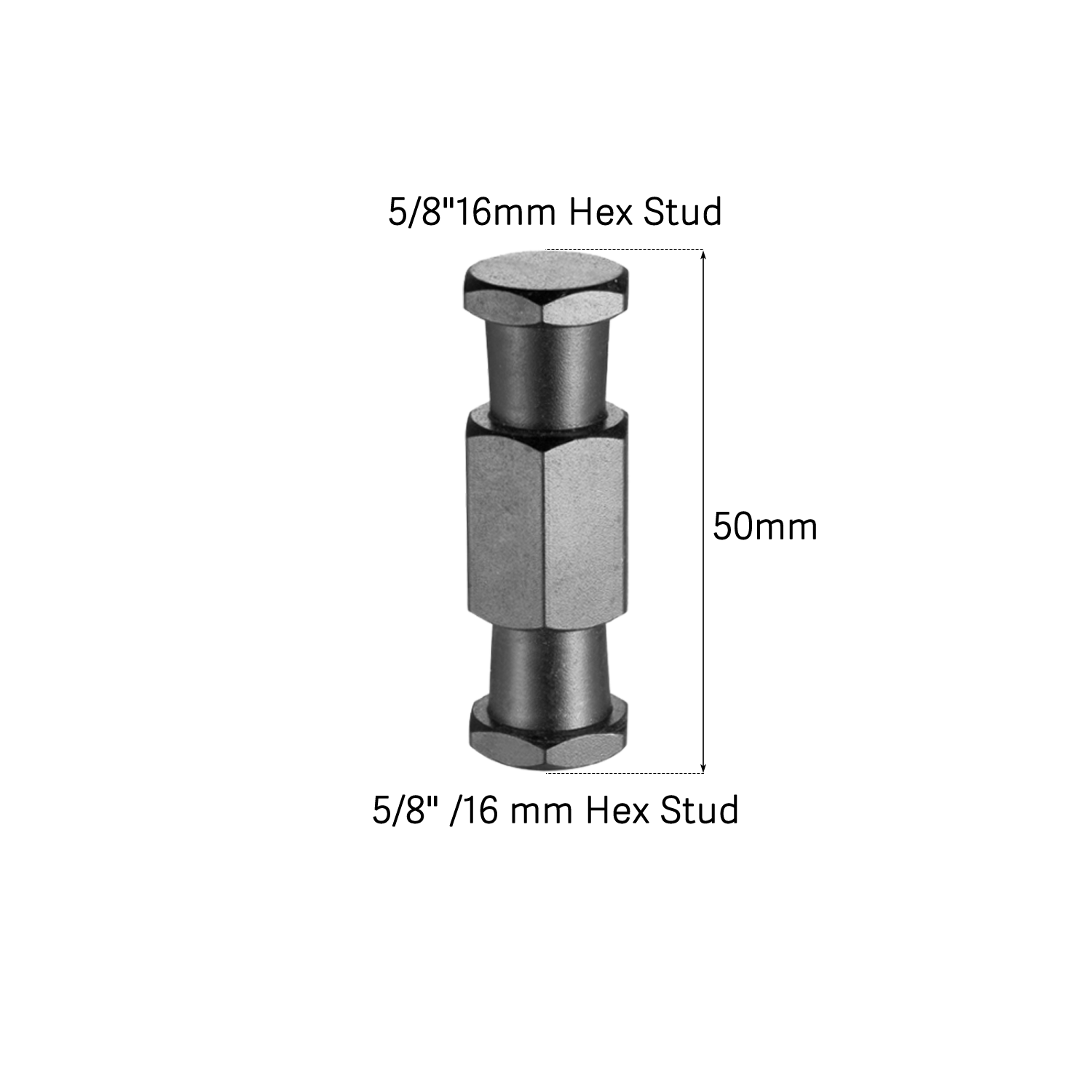

The Joining Stud MC-1009 is a double hex head pin that joins two Super Clamps together with a 6-step fixed-rotation connection. It is compatible with clamps that have 16mm hexagonal + M5 and 1/4"-20 threads.
